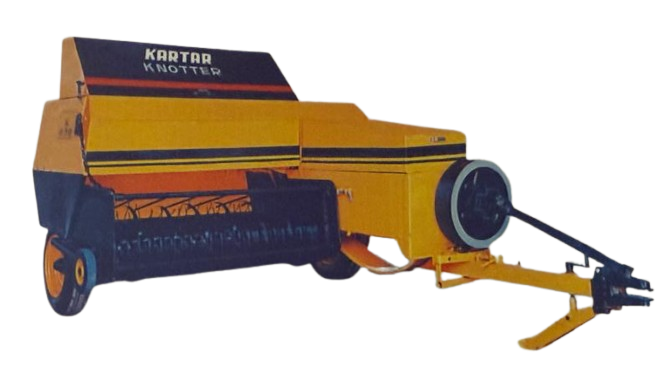

Knotter K-636

Ideal for sugarcane trash, wheat and paddy straw, our knotters are highly reliable as they come with heavy duty draw bar, sprocket driven knotting system, flywheel and strong plunger making them highly efficient and durable. These knotters are designed to automatically pick up the residue, which is transferred into bell chamber with the help of plunger. The straw is compressed into variable length and knotter automatically ties the knot.

Its design is fitted with heavy duty drawbar, flywheel, sprocket driven knotting system, heavy duty feeding system, strong plunger to make it a life long performer.

Distinguishing Qualities

  • The Knotter acts both as a movable and as a stationary unit
  • The knotter can be operated with 35 H.P. or above tractor, with dual clutch.
  • Automatic picking up of residue
Category:

Specifications

Model: K-636

Pick up Reel 1.65 Mtr
Plunger Stroke (at 540 RPM) 80 per minute
Knotters 2
Twin box capacity 4 spools
Main drive fly wheel diameter 559 mm
P.T.O. Three joint
Protection Slip clutch provided
Tractor requirement 35 H.P. & Above
Clutch type Dual
P.T.O. Standard RPM 540 RPM
Bale Length size 0.40 1.10 Mtr.
Overall dimension Length 4.57 Mtr
Width 2.51 Mtr
Height 1.37 Mtr
Machine Weight (Approx) 1725 Kg
