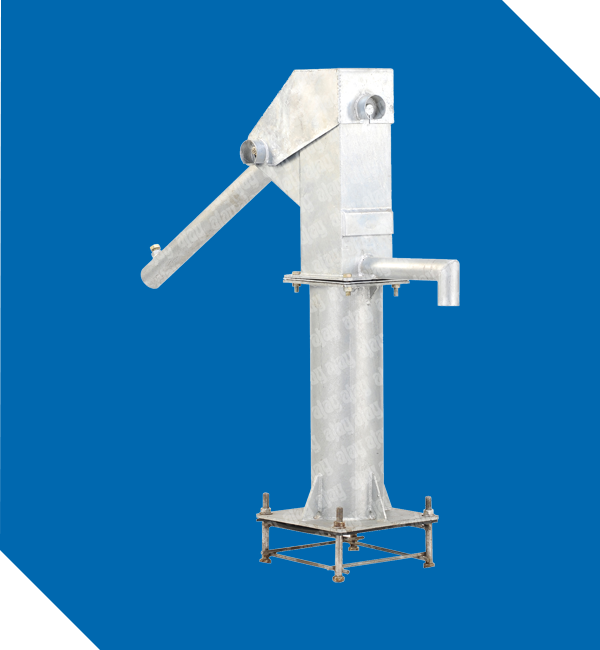

AFRIDEV HAND PUMP

-Discharge – 16.5 litre per minute in 40 stroke or 412 ml in one stroke
-Static water lever – 20 metre to 45 metre
-Stroke length – 225 ± 6 mm
-Pump Rod – it is either Threaded , Eye Hook type made of SS or MS or FRP Pump rod in 3 metre length
-Riser pipe – UPVC (OD 63 mm x thickness 4.7 mm) in 2.9 metre or 3 metre
-Above ground i.e. Head Box Handle front and Rear and Stand Assy.( Hot dip galvanised mild steel)
-Cylinder Assembly – it is made of UPVC pipe with brass liner inside and plunger valve and foot valve either brass or nylon (Derlin)
-Casing Pipe – 100 mm to 200 mm . Afridev hand pump can also be used in Dug Wells
