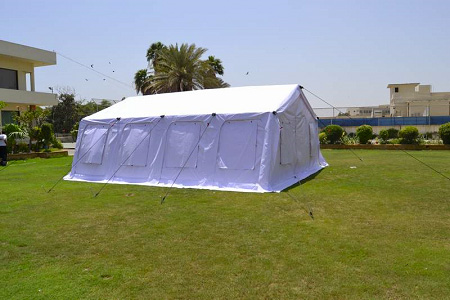

Multipurpose PVC Tent 42m2

Product key features
Huggy 42-V2™ Tents

• UNICEF standard

• Waterproof, rot proof & UV-stabilized

• Lightweight, rectangular & framed tent that can be used for schooling, storage or temporary shelter purposes (comes in 3 sizes)

• Outer tent fabric is made of 450-550 g/m2 PVC coated fabric, 5000 mm

• Marking & logo customised to your requirements

Huggy 42-V2™ Tent
Total size of 7 m x 6 m
Technical specifications
Dimensions – Huggy 42-V2™ Tent

Outer tent
Total size 7.00 x 6.00 m
Center height 2.95 m
Wall height 2.10 m

Center height 2.40 m
Wall height 1.95 m

Materials
Outer tent	450-550 gsm fire retardant* PVC coated fabric 5000 mm, natural white
Inner tent	120 gsm Poly-Cotton, natural white
Ground sheet	190 gsm Polyethylene (HDPE), PVC fabric, sewn in bathtub, light grey/natural white
Windows	8 windows on long sidewalls 0.90 x 1.10 m with PVC stripes reinforcement / 4 windows on short sidewalls 0.85 x 1.00m with PVC stripes reinforcement
Doors	1 door on each gable end side 1.20 x 2.00 m, closed with velcro
Ground sheet	Double stitched to inner tent, 100-200 mm above the ground
Main frame	46 aluminum pipes 36.90 mm diameter, 2 mm thick, silver / 15 steel connectors 42 mm diameter, 2 mm thick, silver / 14 steel connectors with
	base plates 42 mm diameter, 2 mm thick, silver / 5 hanging steel connectors 8 mm diameter, 2 hooks on each end, silver
Seams	All seams are double-stitched with welded main roof seams

Packing & Shipping

All contents are packed in a wooden box.

	Package A	Package B
Content per tent bale	1 roof, 2 wall & 2 door panels, 1 inner	46 frame pipes, 29 frame connectors, 12
	tent, 10 pcs 4 m ropes, 2 pcs 4.5 m	pegs, 5 hanging connectors, 10 base plates,
	ropes & instruction sheet	hammer, instruction sheet & repair kit
Weight per tent	124 kg	130 kg
Total weight	270 kg
Volume per tent	110 x 94 x 56 cm / 0.579 cbm	200 x 46 x 53 cm / 0.488 cbm
Total volume	1.067 cbm
